Weldo implants brains and eyes into machines
An enterprise integrating industrial automation equipment R&D, customization, production, sales and after-sales
HOME >> Intelligent Visual Automatic Enamel Dispensing Machine Home Products >> Precision glue dispensing and Gemstone Setting machine
  • Precision glue dispensing and Gemstone Setting machine

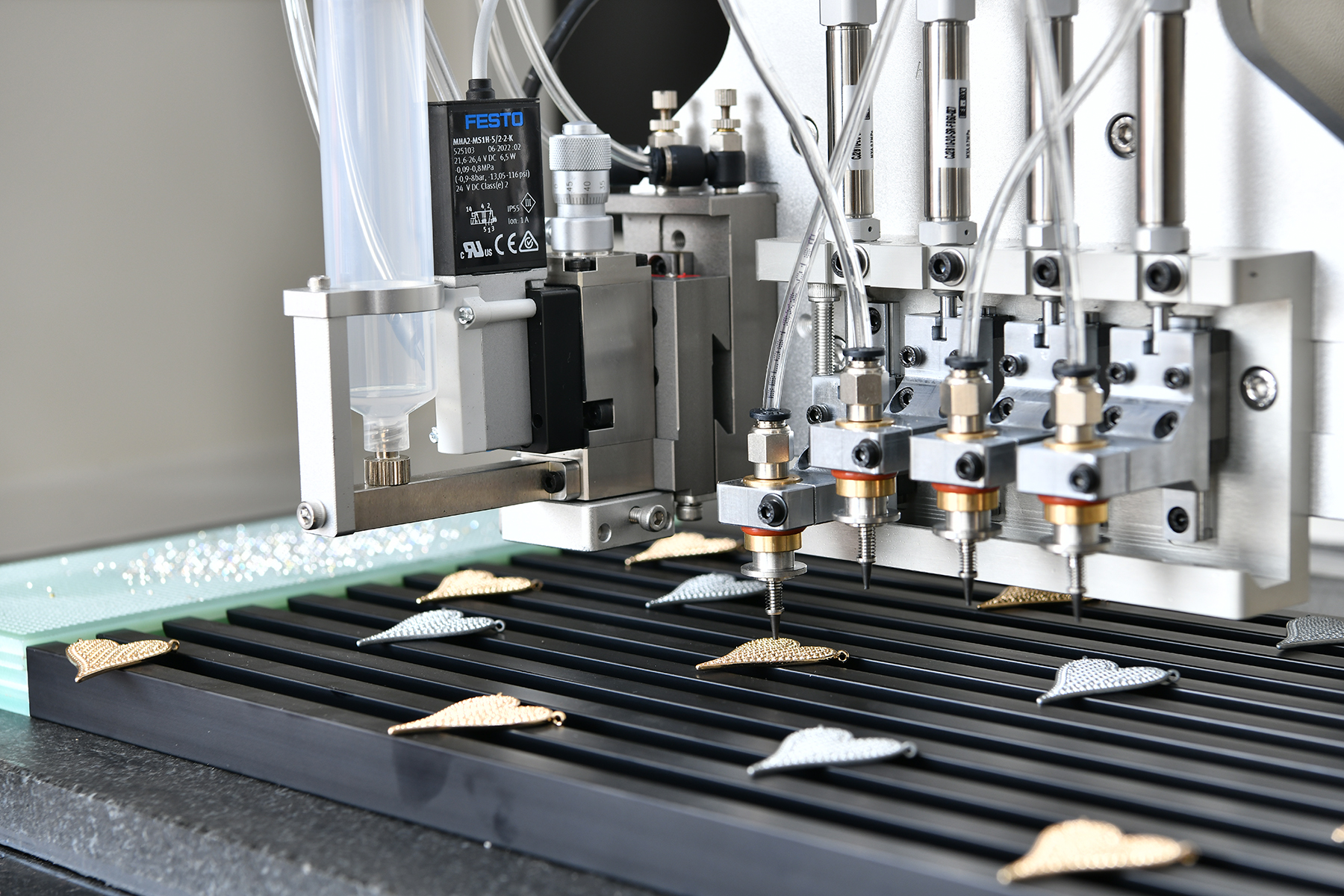

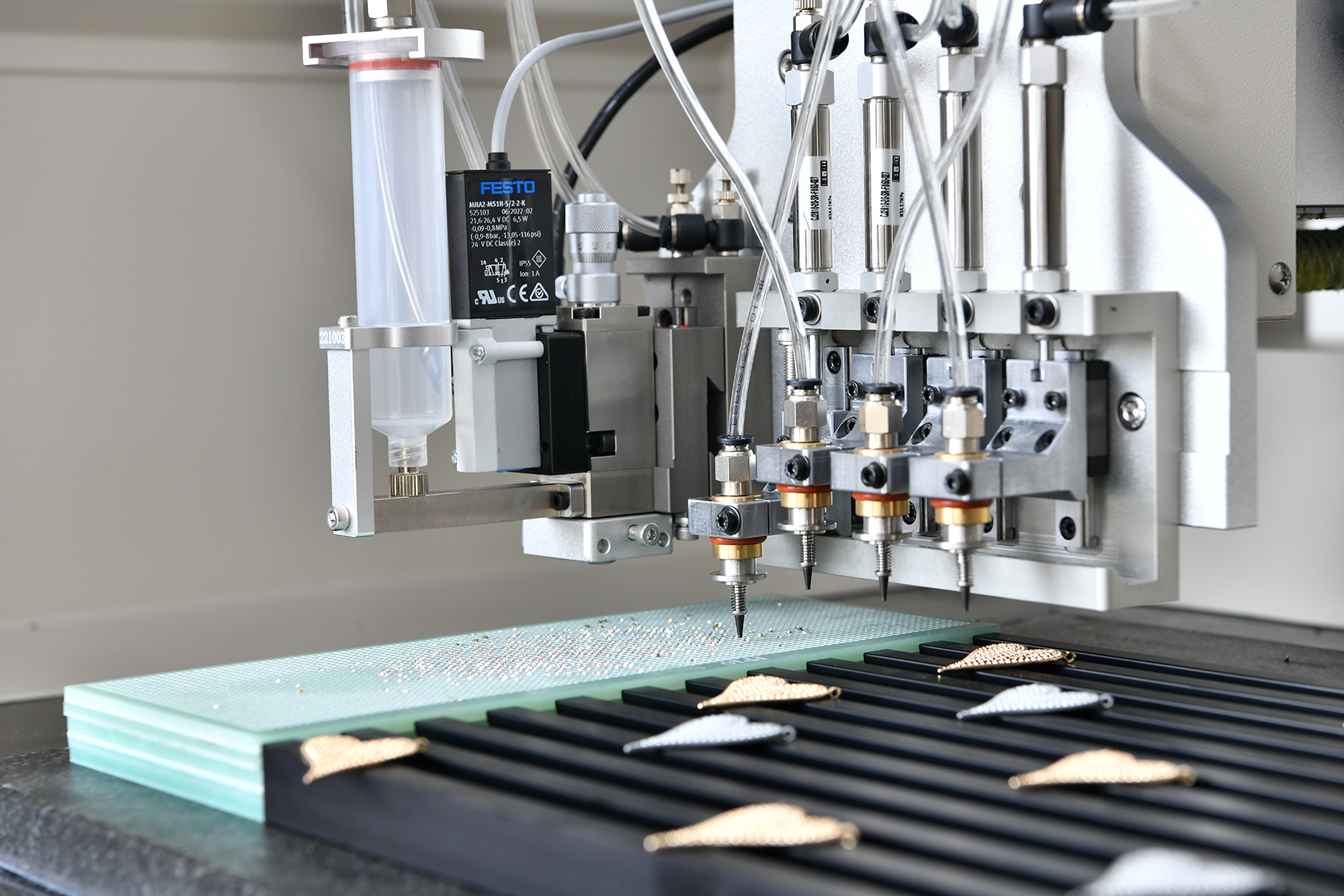

    Precision glue dispensing and Gemstone Setting machine
    Precision glue dispensing and Gemstone Setting machine
    Precision glue dispensing and Gemstone Setting machine
    ❤ Add to collection

  • Precision glue dispensing and Gemstone Setting machine

    Model: WD600-VDS

    Run distance: X:600mm Y:480mm Z:50mm

    Worktabel size: 500*400mm

    Minimum spray glue amount: 0.001ml

    Minimum spray glue time: 3ms


    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Model: WD600-VDS

Run distance: X:600mm Y:480mm Z:50mm

Worktabel size: 500*400mm

Minimum spray glue amount: 0.001ml

Minimum spray glue time: 3ms


Application

Applied to fill epoxy doming glue and set shapes and sizes of diamond (crystal) on ornaments,watches,nails,badge,car number plate.


Features:

· The machine vision intelligently recognizes the location ,face or base of the diamonds (crystals）.

· Visual positioning ensures the picked diamonds be adjusted to the right direction and be placed on the workpiece accurately.

· Intelligent detection recognizes missed taking or placement and unqualified processing,that  improved quality and avoided misprocessing.

· Glue dispensing and diamond placement can be used singly or jointly.

· Machine intelligency plans the route of dispensing and diamond-setting,that promotes the productive efficiency.


Parameters:

Model: WD600-VDS

Run distance: X:600mm Y:480mm Z:50mm

Worktabel size: 500*400mm

Minimum spray glue amount: 0.001ml

Minimum spray glue time: 3ms

Pick and put precision: 0.01mm

Pick and put speed: 3pcs/s

Position Accuracy:±0.02mm

resolution: 4000*3000pi

Transition: 滚珠丝杆Screw balling and linear

Servo motor：交流伺服电机和驱动AC servo motor&driver

Input voltage： 220V±10% 50Hz

Machine size:1340（L）*1330(W)*2050(H)mm

Packing size: 1430（L）*1430(W)*2230(H)mm
