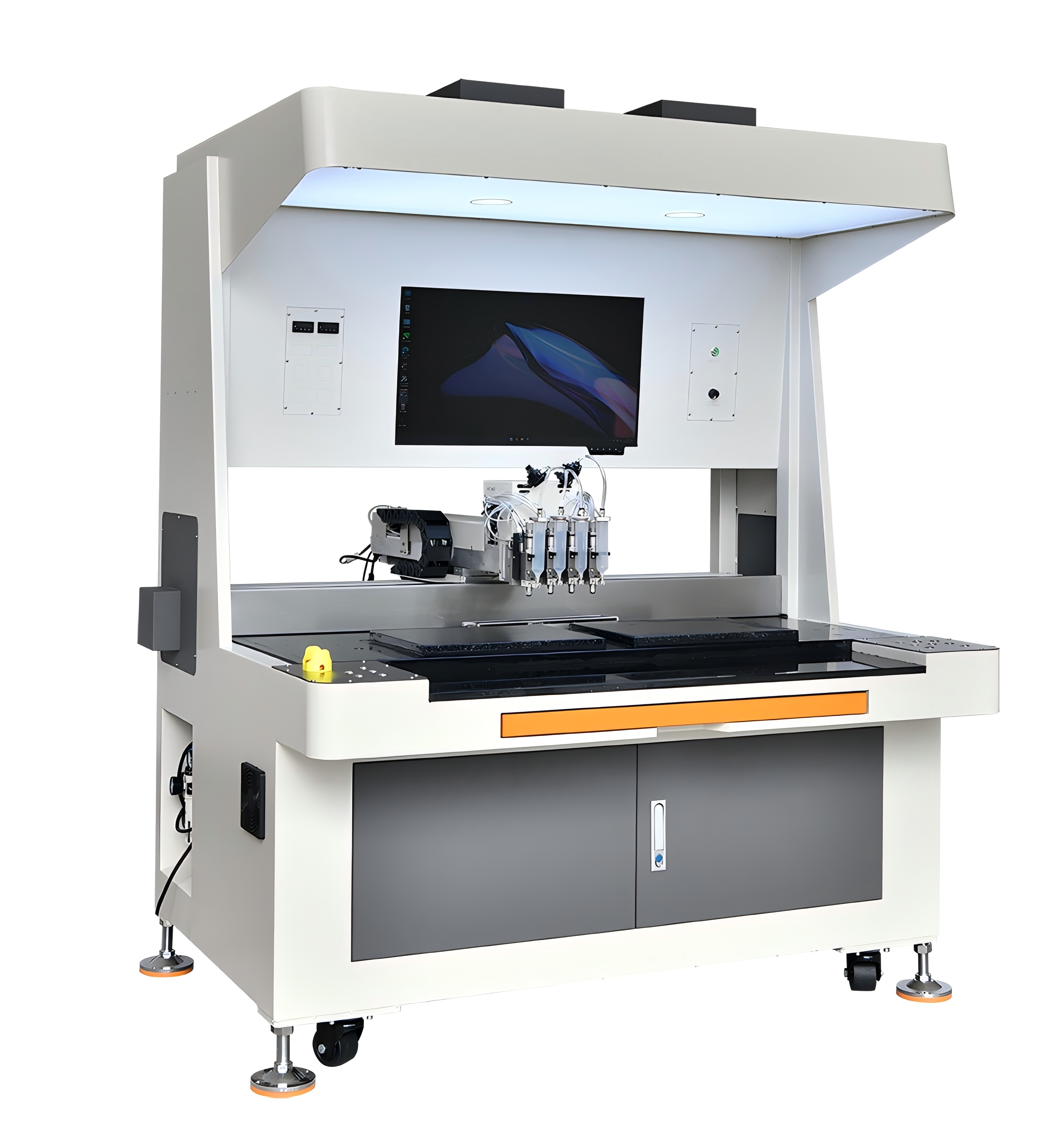

The Wisedo Automatic Enamel Pin Badge Filling Machine features a multi-line precision point demand design, integrating high-precision visual positioning and intelligent calculation. It efficiently completes mark point lacquering, electronic sealing, enamel drop, five-metal overlay, and other processes.
This machine requires no jig, automatically adjusts construction angle and position, and supports non-standardized processes. It is compatible with 30+ types of fluids (such as baking paint, epoxy resin AB glue, enamel, UV glue etc.), significantly improving production efficiency, product quality rate, and operational efficiency for supporting enterprises.
Machine information
Enamel Pin Badge Filling Machine
The Wisedo Automatic Enamel Pin Badge Filling Machine features a multi-line precision point demand design, integrating high-precision visual positioning and intelligent calculation. It efficiently completes mark point lacquering, electronic sealing, enamel drop, five-metal overlay, and other processes.
This machine requires no jig, automatically adjusts construction angle and position, and supports non-standardized processes. It is compatible with over 30 types of fluids (such as baking paint, epoxy resin, AB glue, enamel, and UV glue), significantly improving production efficiency, product quality rate, and operational efficiency, thereby supporting enterprises.

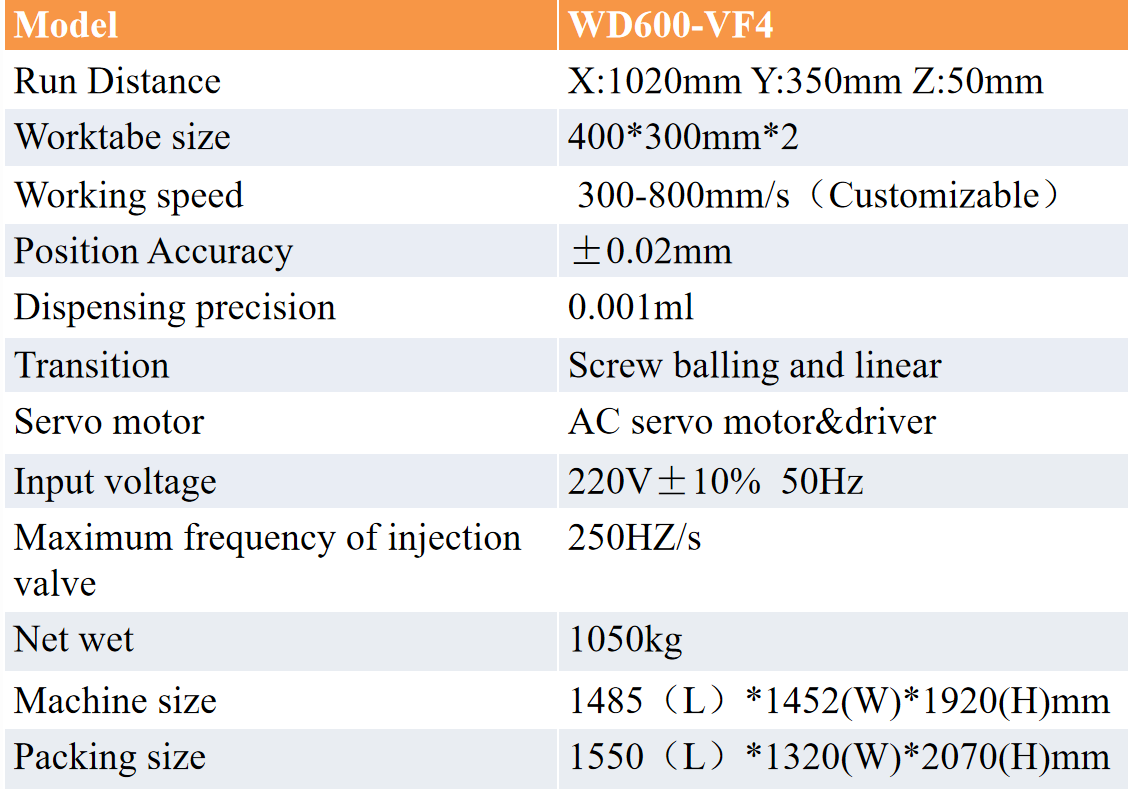

Technical Parameter
Why Choose Wisedo Enamel Pin Badge Filling Machine
Wisedo, as a global leader in the development and manufacturing of Enamel Coloring Machines, integrates advanced AI technology—the "brains and eyes"—into our jewelry enamel coloring robot. This ensures intelligent visual recognition and precision enamel application, setting a new standard in the glue manufacturing industry.
Strong R&D Team
.png)
Led by our boss, Doctor Lee, our R&D continuously drives innovation, keeping our machine technology ahead of the competition.
Standardized Manufacturing
Our standardized manufacturing process adheres to the ISO 9001 quality system, ensuring high quality and precision in our Intelligent Visual Enamel Pin Badge Filling Machine.
International Technical Support
From pre-sales consultation to post-sales service, our technical support ensures reliability and boosts customer trust in selecting our intelligent Visual Enamel Pin Badge Filling Machine.

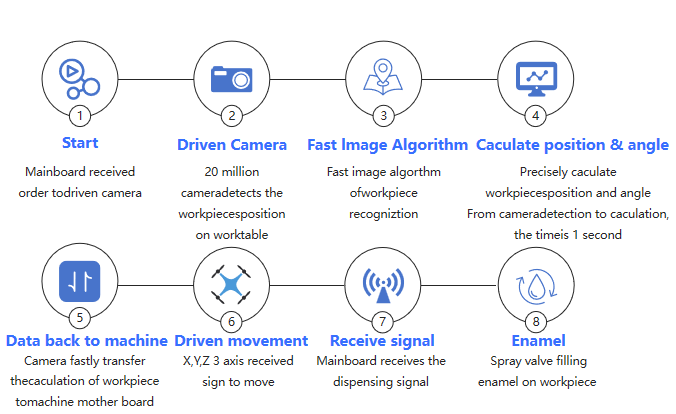

Enamel Pin Badge Filling Machine Visual Positioning Method
Enamel Pin Badge Filling Machine Spray Valve
√ Applicable fluid viscosity: 0-200,000 Cps
√ Non-touch spraying
√ Stable ejection dot diameter: 0.2mm
√ Dispensing precision: 0.001ml
√ Ultra-High Frequency: Extremely fast response, achieving the highest jetting frequency, exceeding 1000Hz.
√ Ultra-High Precision: Suitable for jetting extremely small amounts of glue (picoliter and nanoliter quantities), offering the highest precision.
