The AI Panoramic Vision Badge Coloring Machine (WSD900-2V2F) is an advanced automated solution designed to streamline and enhance badge coloring production. Equipped with high-precision vision recognition, the machine can automatically detect the position and angle of randomly placed workpieces, ensuring accurate and consistent coloring without manual alignment.
By combining AI-driven path optimization with intelligent mixed-product recognition, it allows manufacturers to process multiple badge designs simultaneously while significantly improving efficiency. The dual-station design enables continuous operation, reducing downtime and increasing overall productivity.
With its user-friendly software, operators can easily import design files, select colors, and let the system automatically generate the optimal dispensing path—minimizing training requirements and reducing reliance on skilled labor.
Ideal for badge manufacturers seeking higher output, improved quality, and lower operating costs, this machine delivers fast, precise, and stable performance for modern production environments.

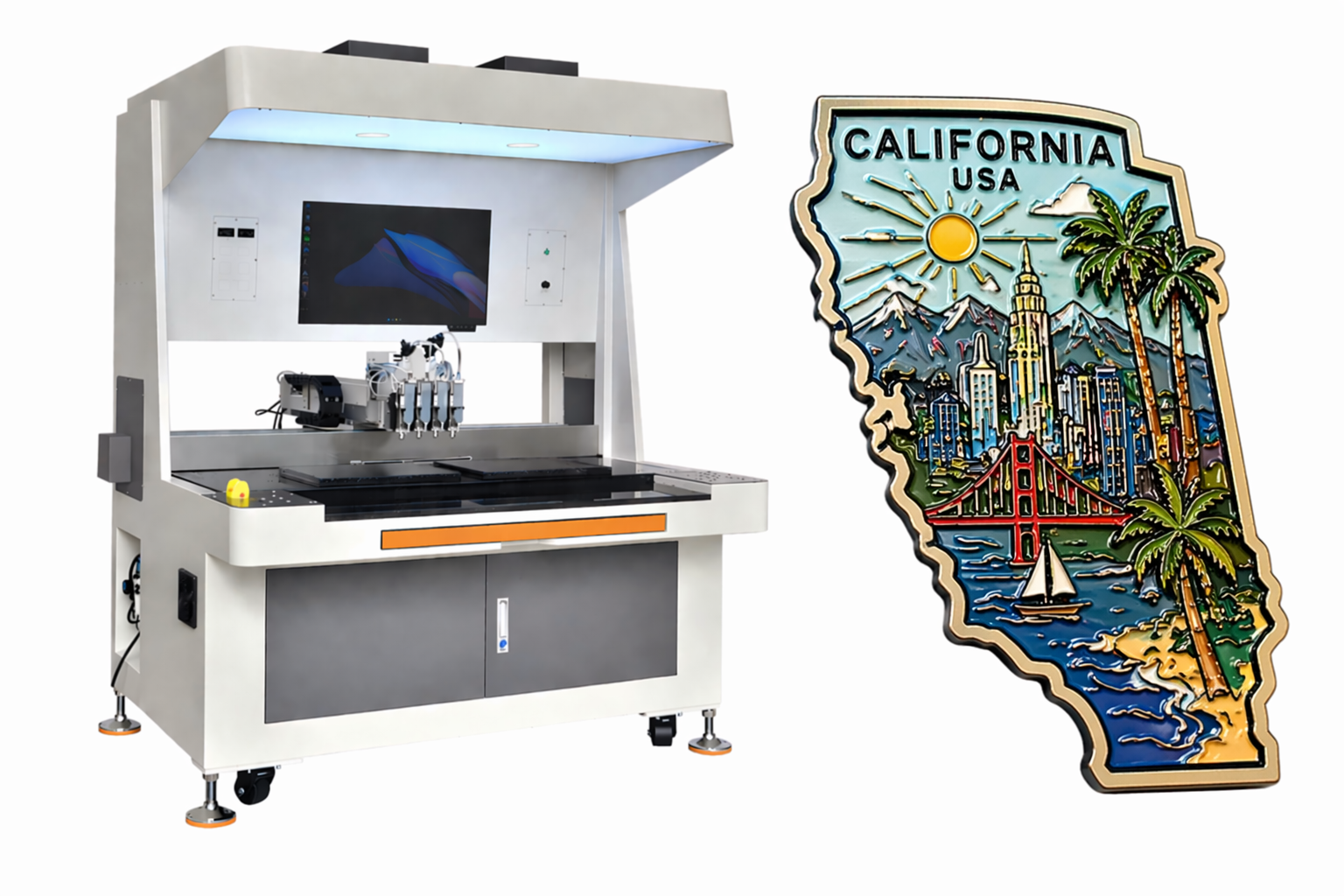

AI Panoramic Vision Badge Coloring Machine
Model: WSD900-2V2F
Smarter Badge Coloring. Faster Production. Higher Yield.
Designed for modern badge manufacturers, the AI Panoramic Vision Badge Coloring Machine transforms traditional manual coloring into a fully automated, intelligent process. With advanced vision recognition and AI-driven path optimization, it dramatically improves efficiency, consistency, and product quality—while reducing labor dependency.
🚀 Key Features
🎯 AI Vision Recognition & Precision Positioning
Badges can be placed freely on the platform—no need for manual alignment.
The system automatically detects position and angle with high precision, ensuring accurate coloring every time.
🔀 Mixed Product Processing (Multi-SKU Capability)
Process multiple badge designs simultaneously.
The machine intelligently recognizes different patterns and applies correct coloring paths for each.
🧠 Intelligent Path Optimization
AI automatically generates the most efficient dispensing path after color selection.
Result: Up to 100% increase in production efficiency.

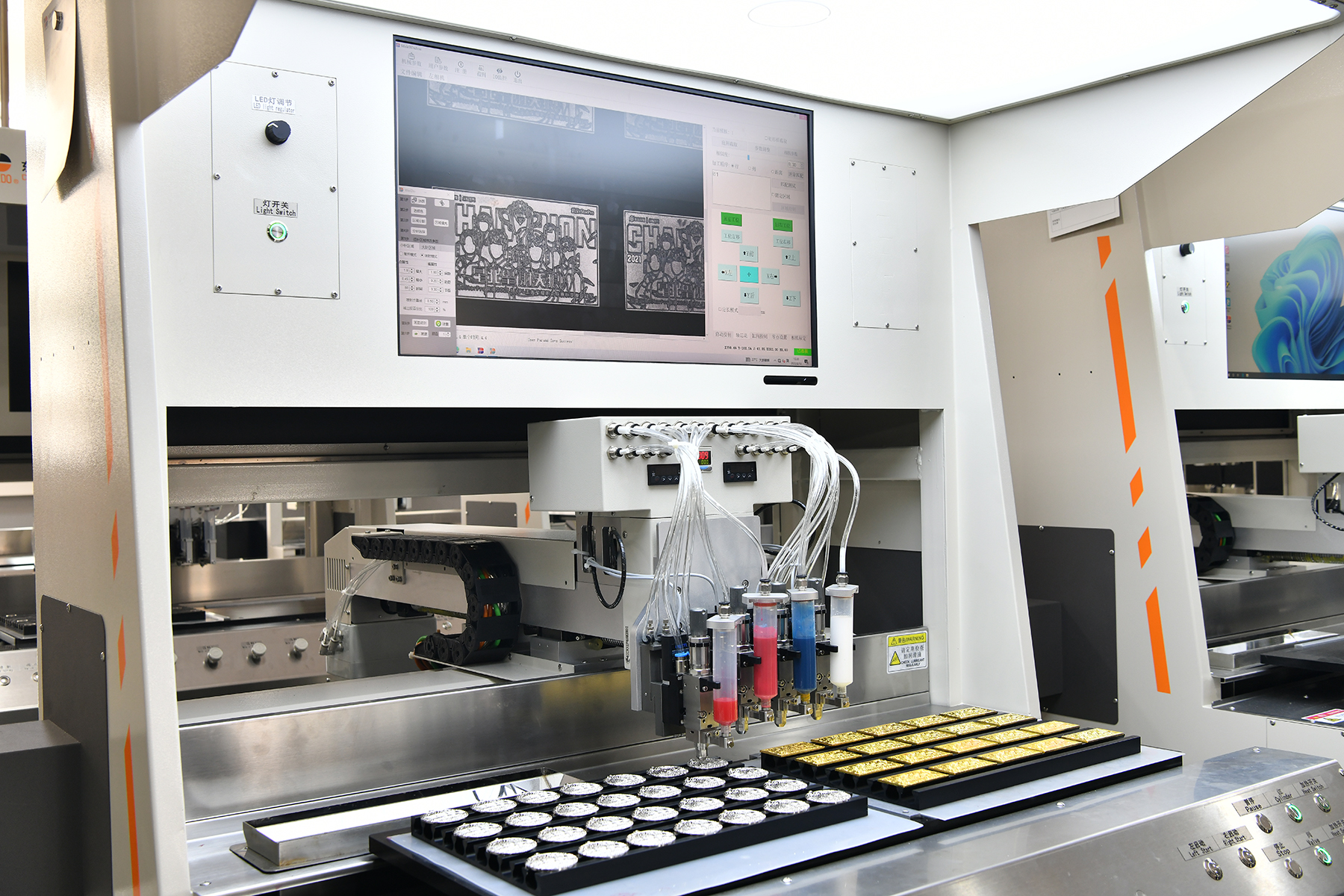

🔄 Dual-Station Continuous Operation
Two working platforms enable non-stop production cycles.
Load on one side while the other is running—maximize throughput and reduce downtime.

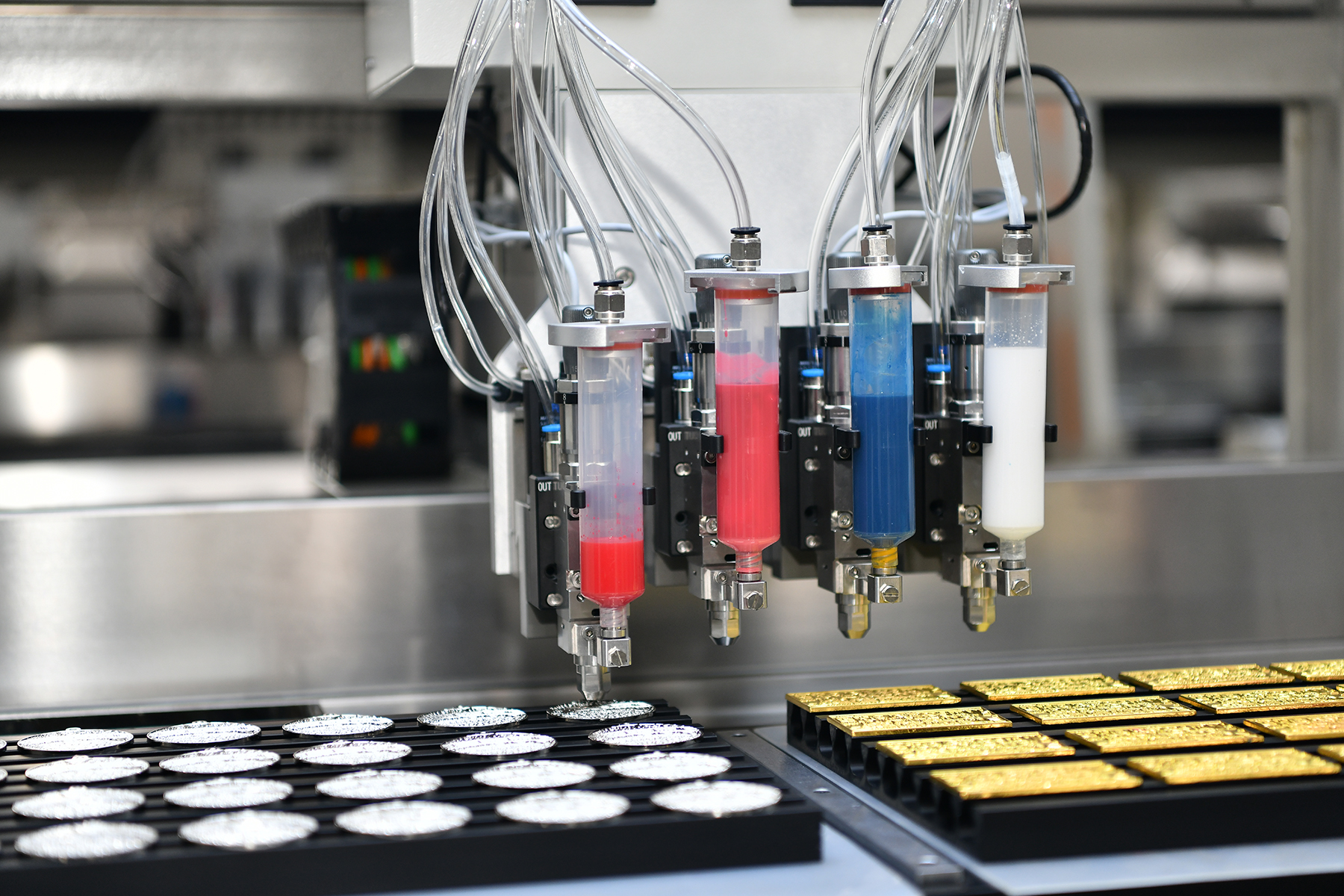

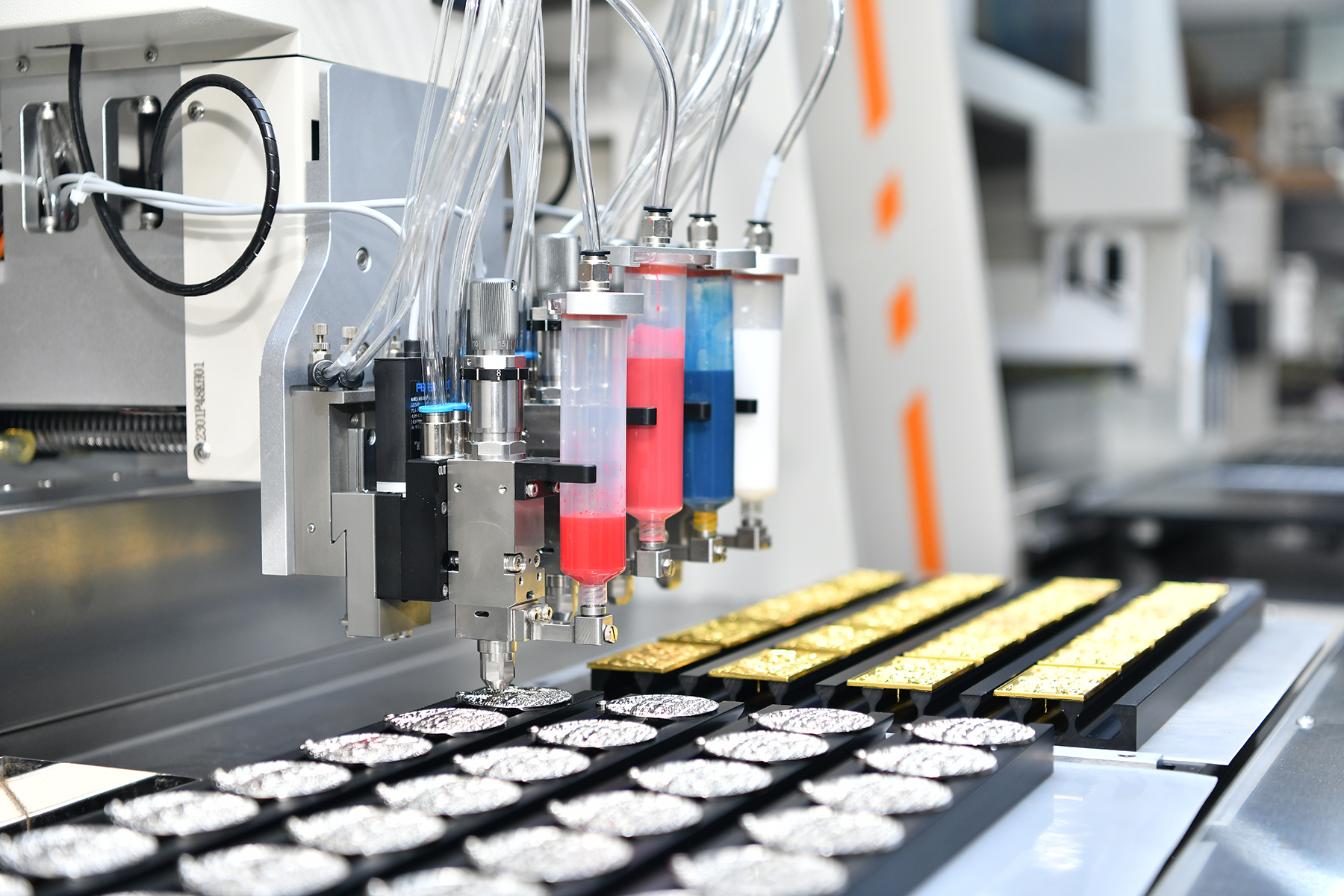

💧 High-Precision Dispensing System
Compatible with both high-speed dispensing valves and jet valves:
Faster output
More stable flow
Superior accuracy
⚡ Optional Auto Programming Software
Automatically generates dispensing paths from imported AI design files.
Greatly reduces programming time and eliminates complex setup.
💡 How It Works
Capture or upload a real image of the badge workpiece
Import your AI design file
Use the color picker tool to assign colors
System auto-generates optimal dispensing paths
Start production—no skilled labor required
✔ Simple operation
✔ Minimal training required
✔ Consistent, repeatable results
📈 Benefits for Your Factory
Reduce reliance on skilled labor
Increase production efficiency by up to 2×
Improve product consistency and yield rate
Handle complex and mixed orders effortlessly
Lower long-term operating costs
⚙️ Technical Specifications
| Parameter | Specification |
|---|
| Model | WSD900-2V2F |
| Travel Range | X: 1020mm / Y: 350mm / Z: 50mm |
| Worktable Size | 400 × 300 mm × 2 |
| Working Speed | 300–800 mm/s (customizable) |
| Position Accuracy | ±0.02 mm |
| Dispensing Precision | 0.001 ml |
| Drive System | Ball screw + linear guide |
| Servo System | AC servo motor & driver |
| Input Voltage | 220V ±10%, 50Hz |
| Max Jet Valve Frequency | 250 Hz/s |
| Net Weight | 1050 kg |
| Machine Size | 1485 × 1452 × 1920 mm |
| Packing Size | 1550 × 1320 × 2070 mm |
🌍 Built for Global Manufacturers
Whether you're producing lapel pins, badges, emblems, or custom metal crafts, this machine is designed to meet the needs of high-volume, high-precision production environments in the U.S. and beyond.
