Preventing UV-Induced Yellowing in Transparent Enamel Badges

1. Pain point: transparent enamel looks clear at delivery but turns yellow after months of light exposure

A major quality complaint with transparent enamel badges is delayed yellowing. The product may leave the factory with excellent clarity, clean color, and no obvious defect, yet after display near windows, retail lighting, or outdoor exposure, the transparent enamel develops a warm yellow cast. This is especially visible on clear areas over silver, white, or pale metal finishes because even a slight amber tone changes the entire appearance. Collectible badges and premium branded items are particularly sensitive because customers expect the transparent section to preserve the original metal brightness for a long period. The specific pain point is that yellowing is often a delayed aging defect rather than an immediate production defect, so a factory can pass initial inspection and still receive complaints months later.

2. Root causes from a badge filling engineer’s perspective

Cause 1: standard transparent resin systems can oxidize or chemically change under ultraviolet and high-energy visible light. That molecular aging increases light absorption in the blue region and makes the material appear increasingly yellow.

Cause 2: pigments, additives, hardeners, or trace contaminants may not have sufficient light stability. Even when the base resin is relatively clear, an unstable additive package can accelerate discoloration during long-term exposure.

3. Why traditional filling and manual coloring cannot fully control the problem

A conventional enamel pin badge filling machine can place the correct amount of transparent material, but it cannot compensate for a formulation that has poor aging resistance. Manual operators may focus on the appearance immediately after filling and curing, because that is what can be seen on the production floor. A clear material today may still yellow later if the pigment and resin system are not designed for long-term optical stability.

Manual mixing creates additional uncertainty. Small differences in hardener ratio, pigment addition, mixing time, or contamination from previous colors can change aging behavior. One worker may prepare a perfectly balanced batch while another adds slightly more tint or uses a container with residue. The product can therefore show different yellowing rates between lots even if the initial color looks similar.

4. How Wisedo uses an anti-yellowing transparent enamel process

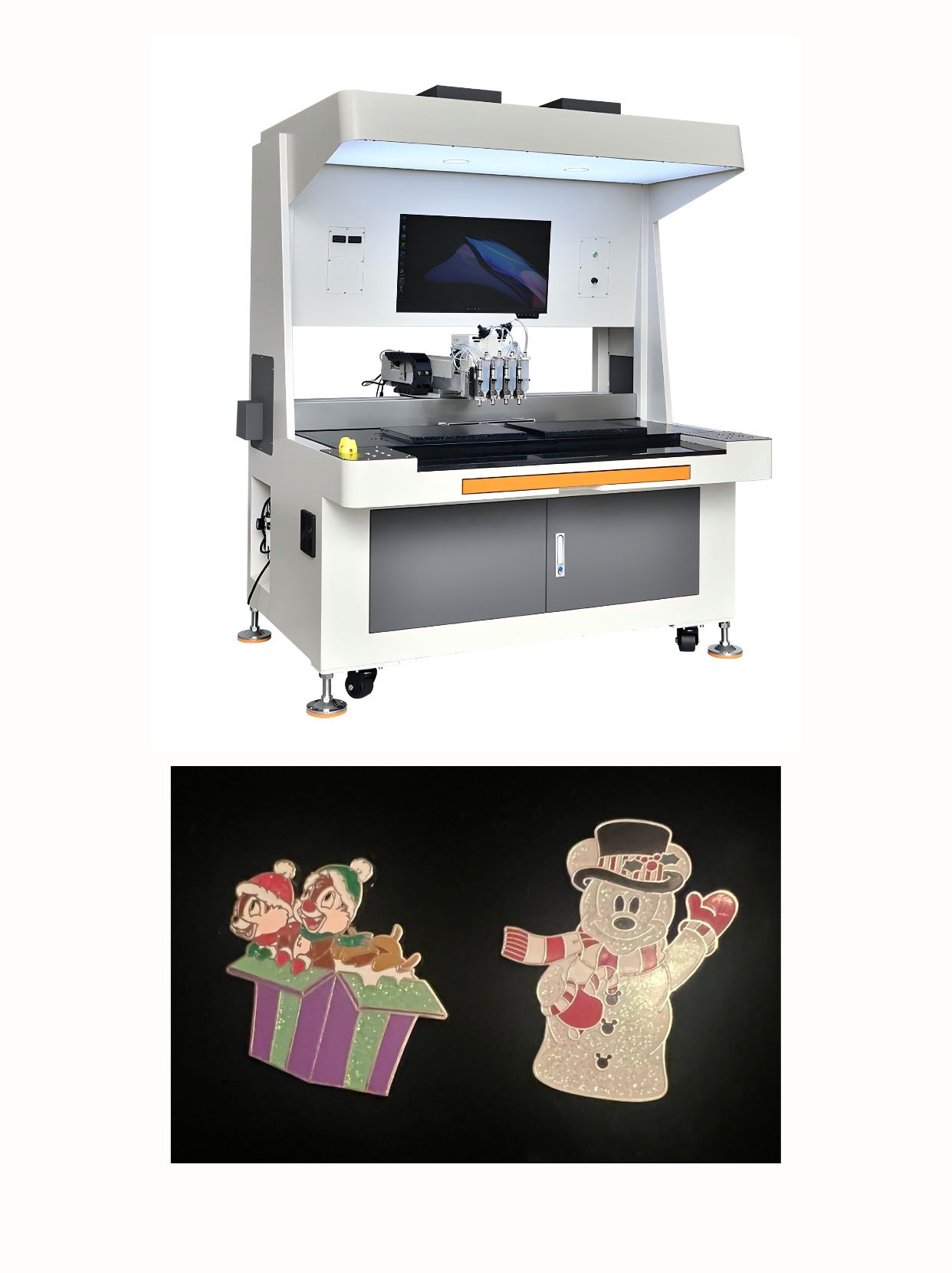

Wisedo’s approach starts with a dedicated anti-yellowing pigment and material system rather than treating transparency as simply “no color.” The AI visual enamel pin badge filling machine then supports that material with repeatable dosing and process control. The key idea is to keep the formulation ratio, local film thickness, dispensing amount, and curing preparation within a validated range so the anti-yellowing chemistry can perform consistently.

The enamel pin badge filling machine can use stored recipes to repeat the same shot volume and path across each transparent area. A metal tags paint filling machine can use similar logic for transparent protective decorative coatings. wisedo intelligent equipment combines stable material handling with a light-stable formulation so long-term optical clarity depends less on operator judgment.

For marketing purposes, the correct claim should be tied to a defined aging standard rather than an unlimited promise. The process can be designed to maintain no visible yellowing within the agreed accelerated-aging test window and customer use conditions. This is much more meaningful than claiming that no transparent material can ever yellow under every possible environment.

5. Test data and validation

A practical validation can use 60 transparent enamel badge samples from the same metal and artwork batch. Thirty are made with a standard transparent color system and thirty with the anti-yellowing process. Measure or photograph initial color, then expose the parts to a defined accelerated UV-aging program or customer-agreed light-aging method. After exposure, compare yellow index, visual transparency, gloss, and any haze increase.

A useful target is no visible yellowing under normal inspection after the agreed test duration, a yellow-index change remaining within the customer’s acceptance threshold, and at least 98% appearance pass rate. If the standard group shows a clearly measurable yellow shift while the anti-yellowing group remains close to the original reference, the improvement is easy to demonstrate. Where an instrument is available, the customer can define a maximum ΔYI or ΔE limit before testing. These are validation targets rather than universal lifetime guarantees because UV intensity, temperature, exposure time, resin chemistry, badge thickness, and end-use environment all affect aging.

6. When manual adjustment is still necessary

One operator adjustment is required when the customer changes to a different transparent resin or hardener system. The technician should revalidate the pigment ratio and curing parameters because an anti-yellowing recipe proven with one resin cannot automatically be assumed to perform identically with another.

7. Sample test request

Send us 10–20 unfinished badges together with the enamel material and artwork file. We can test the filling process and provide a production video, cycle-time report and recommended parameters.
